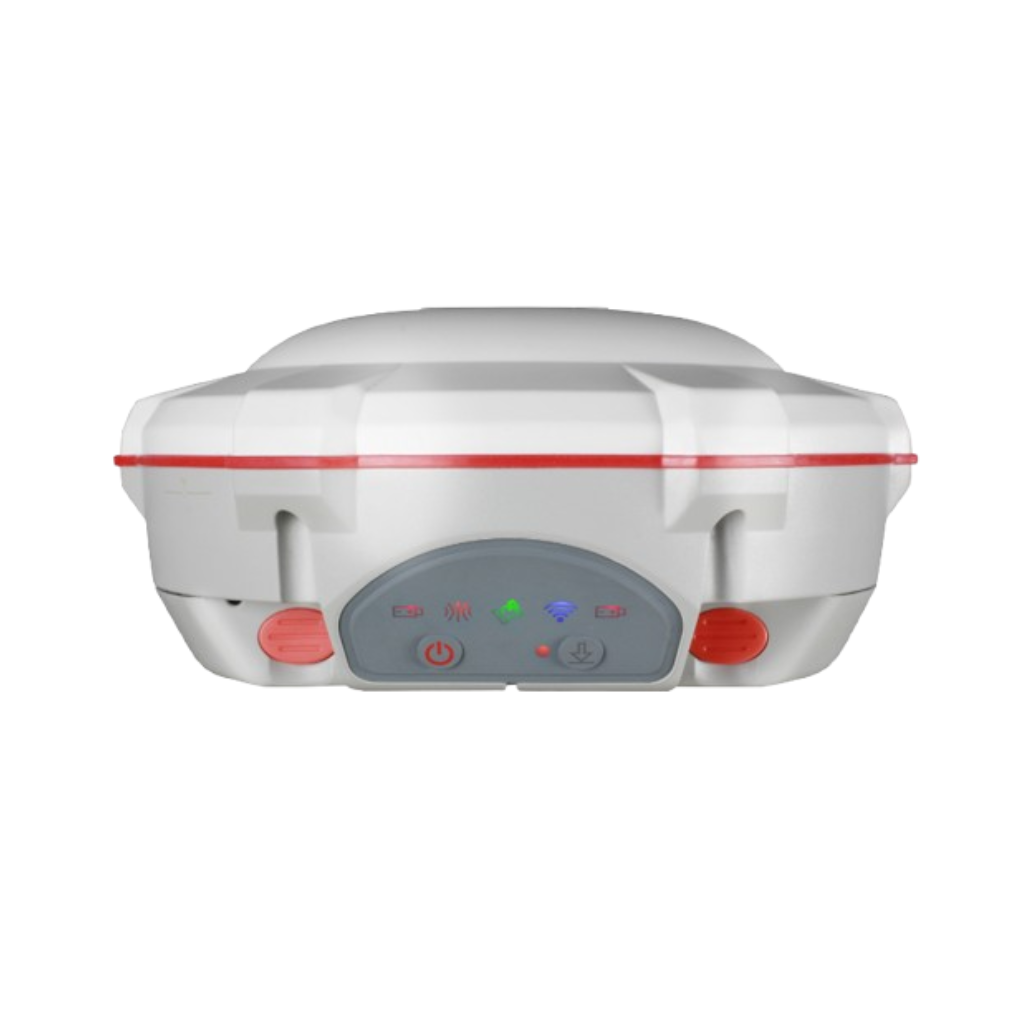

GPS Geodetik SinoGNSS T300
GPS Geodetik SinoGNSS T300 Since its debut in 2013, the T300 has not only maintained its iconic design, but has also consistently evolved to stay at the forefront of GNSS technology.
- GPS L1/L2/L5, BeiDou B1/B2/B3/B1C/B2a/B2b, GLONASS L1/L2/L3, Galileo E1/E5a/E5b/E6/AltBOC, QZSS L1/L2/L5, Navic L5, SBAS
- Compact Design
- Hot Swap Battery
- User-friendly Interface
- Support WIFI/UHF/4G
- Web server for easy configuration
Jual GPS Geodetik T300 SinoGnss
Jual GPS Geodetik SinoGNSS T300
T300 GNSS Receiver is a compact RTK GNSS receiver tracking all working constellations, including GPS, BDS, GLONASS, Galileo, QZSS, Navic and SBAS
Built-in GPRS/ GSM/4G modem ensures the T300 seamlessly work with all kinds of CORS, and 0 – 2 Watt internal UHF allows you more convenient and effective field work
Performance SinoGNSS T300
Channel : 965
Satellites tracking
GPS: L1C/A, L2C, L2P, L5
BeiDou:B1I, B2I, B3I, B1C, B2a, B2b
GLONASS:L1, L2, L3
Galileo: E1, E5a, E5b, E6, AltBOC
QZSS:L1C/A, L1C, L2C, L5
Navic: L5
SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM,BDSBAS
Signal Re-acquisition : <1.5 s
Cold Start : <50 s
Warm start : <30 s
Hot start : 15 s
RTK Initialization Time : <10s
Initialization reliability : >99.9%
Static and Fast Static : H 2.5 mm + 0.5 ppm RMS V 5 mm + 0.5 ppm RMS
Real Time Kinematic : H 8mm + 1ppm RMS V 15mm + 1ppm RMS
Long Observation Static : 3 mm + 0.1 ppm H 3.5 mm + 0.4 ppm V
DGPS : ＜0.4m RMS
SBAS : 1 m 3D RMS
Standalone : 1.5m 3D RMS
Physical
Size(L × W × H) : 15.8 cm × 7.5 cm
Weight : 0.95 kg with two batteries
Working Temperature : -40 °C to + 65 °C (-40 °F to 149 °F)
Storage Temperature : -40 °C to + 85 °C (-40 °F to 185 °F)
Humidity : 100% non-condensing
Waterproof & Dustproof : IP67, protected from temporary immersion to depth of 1 m
Shock : Survive a 2m drop onto the concrete
Input Voltage : 7-28 VDC
Power Consumption : 1.92 W
Li-ion battery capacity : 2 × 2000 mAh, up to 10 hours typically
Memory : 8GB
ITEM PEMBELIAN :
Base SinoGNSS T300
Rover SinoGNSS T300
Controller R550 ( bisa pakai HP smartphone )
Radio Eksternal CDL5
Tripod Alumunium
Pole Carbon
Tribrach Adapter
“KEPERCAYAAN ANDA ADALAH MODAL UTAMA KAMI”
Beli GPS Geodetik Sinognss T300 dengan harga ekonomis, Gratis biaya pengiriman wilayah Jakarta dan dapat dikirim keseluruh Indonesia. Dapatkan hanya di FAMILIASSURVEY toko online terbaik Seluruh Indonesia, belanja online mudah aman dan terpercaya.
