Description

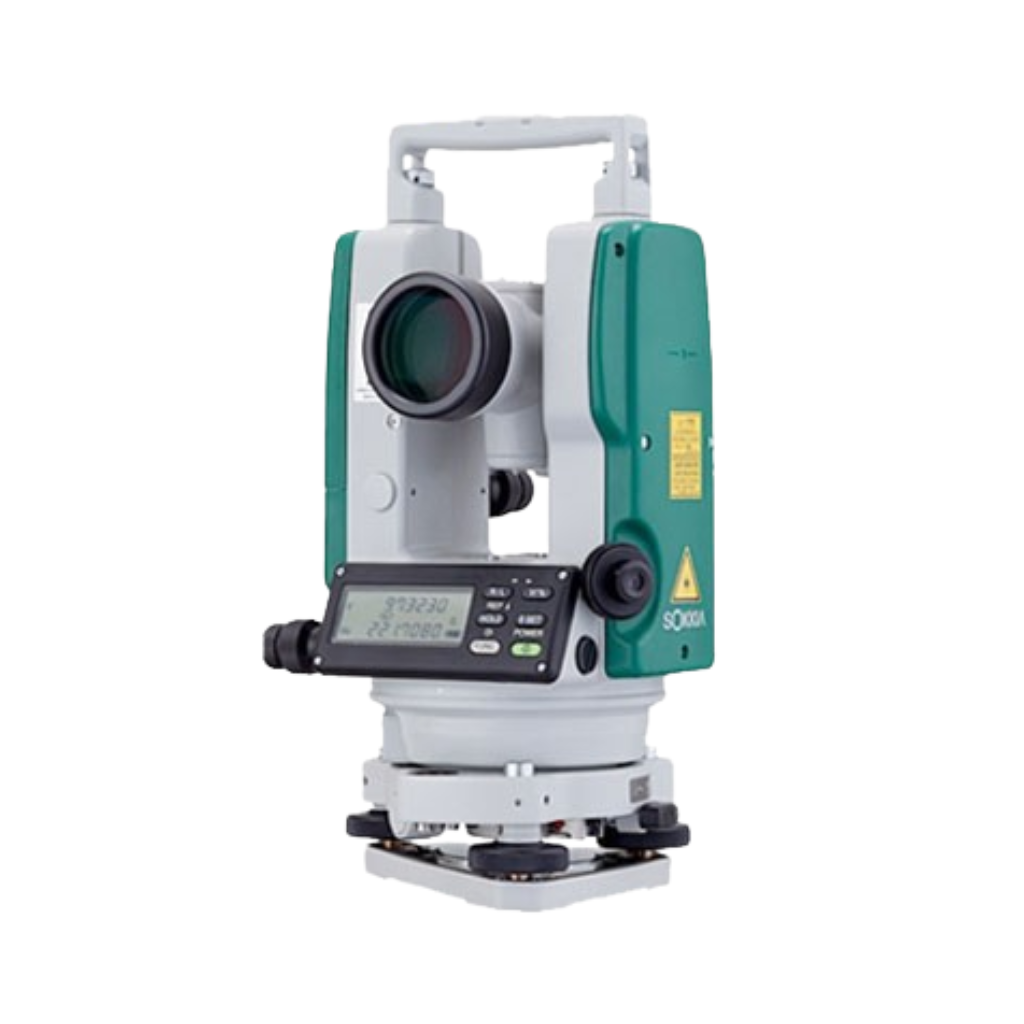

Jual Theodolite Sokkia DT540

Jual Theodolite Sokkia DT540 series theodolites feature superior optics, mechanics, advanced absolute encoder systems, and proven automatic compensators. In addition to these essential technologies for angle measurement instruments, the Sokkia DT series boasts the industry’s highest IP66 dust and water protection capability to withstand the harshest worksite environments.

Jual Theodolite Sokkia DT540

Jual Theodolite Sokkia DT540 series Four LR6/AA alkaline batteries provide extra-long operating time from 100 to 170 hours, saving costs for replacement batteries. and The DT instruments operate for two to five weeks without changing batteries.

Theodolite Sokkia DT540

Fitur Theodolite Sokkia DT540

• 2.5”  unsurpassed telescope resolving power*
• IP66 industry’s highest dust/water protection
• Absolute encoders
• Lightweight
• Standard LR6/AA batteries
• Up to 170 hours of operating time

Spesifikasi Theodolite Digital Sokkia DT540

Telescope

Length : 149mm (5.9in.)
Objective aperture :45mm (1.8in.)
Magnification : 30x
Resolving power : 2.5
Image / Field of view : Erect / 1°30′ (26m/1,000m)
Minimum Focus :0.9m (3.0ft.)
Stadia : Multiplication constant: 100, Additive constant: 0
Reticle illumination : Y

Angle measurement

Method : Absolute rotary encoder scanning
Detecting Horizontal : Diameter
Vertikal : Single
Display resolutions : 1″ / 5″ 0.2 / 1mgon
Accuracy : 5″
Circle Diameter : 71mm (2.8in.)
Automatic Compensation Range : ±3′(±55mgon

General

Control panel layout : On both faces
display : LCD, 7 digits x 2 lines, backlight
Interface : RS-232C
Optical plumme : Magnification: 3x, Field of view: 3°, Minimum focus: 0.5m (1.64ft.)
Plate level : 40″/2mm
Circular level : 10’/2mm
Tribrach : Detachable
Operating temperature : -20 to +50°C (-4 to+122°F
Dust and Water Protection : IP66
Size (w/handle) : W188 x D149 x H313mm (W7.4 x D5.9 x H12.3in)
Weight (w/batteries) : 4.2kg (9.3 lb.)4.1kg (9.0 lb.)

Power supply

Battery : LR6/AA batteries x 4
Operating time w/alkaline batteries at 20°C (68°F)
Theodolite Only : Approx.140 hrs
Standard accessories • LR6/AA batteries (x4) • Lens cap • Plumb bob • Tool kit • Operator’s manual • Carrying case and shoulder strap

Paket Pembelian :

Theodolite SOKKIA
Tripod Statif
Rambu Ukur 5M
Sertifikat Kalibrasi
Kartu Garansi
Garansi Resmi 12 Bulan

“KEPERCAYAAN ANDA ADALAH MODAL UTAMA KAMI”

Beli Theodolite Digital Sokkia DT540 dengan harga ekonomis, Gratis biaya pengiriman wilayah Jakarta dan dapat dikirim keseluruh Indonesia. Dapatkan hanya di FAMILIASSURVEY toko online terbaik Seluruh Indonesia, belanja online mudah  aman dan terpercaya.
