Description

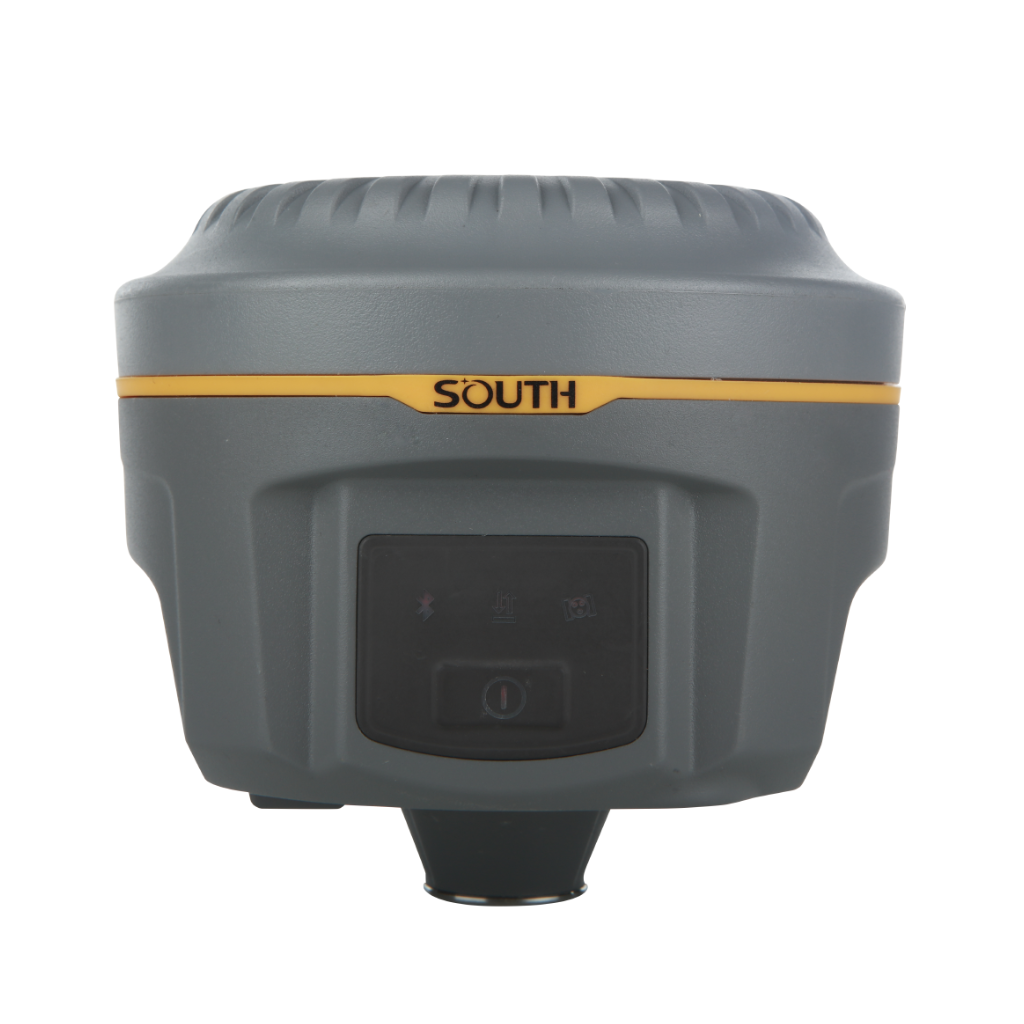

South Galaxy G1 Plus

South Galaxy G1 Plus
Intelligent platform

• Linux OS
  New generation of embedded Linux operating system platform improves RTK performance and work
  efficiency. Its operating efficiency is higher; a unique core processing mechanism which can respond to more
  than one command at one time; it starts faster and more responsive in real time. While the stability of
  system is much higher, it can be adapt to the job of longer uninterrupted power.
• Web UI management platform
  Embedded Web UI management platform supports WIFI and USB mode connection. Users can monitor the
  receiver status and configure it via the internal Web UI management platform

Wireless data communications

• Wi-Fi
  New Wi-Fi module, not only can be used as data link to access to internet, but also can be as a hotspot which
  can be accessed by any other smart devices to configure the receiver.
• Bluetooth
  Equipped with dual-mode Bluetooth v4.0 standard which is able to connect the other smart devices and
  compatible with Bluetooth v2.1 standard. It not only enlarges the work range but also makes the data
  communication become more stable.
• NFC
  A light touch can be successfully paired which makes the connection become faster and more convenient.

Geodetik South Galaxy G1 Plus

Geodetik South Galaxy G1 Plus
Data Link

• Built-in functional digital radio
  SOUTH self-developed digital radio which can fully support the communications with the mainstream
  radio protocols: Trimtalk450S, TrimMark3, PCC EOT, and SOUTH. Realize the random switching of the
  radio range 410MHZ-470MHZ and the power level as well.
  Radio repeater: The rover can broadcast the corrections via internal radio to other rovers after
  received the radio differential signal.
  Internet repeater: The rover can broadcast the corrections via internet to other rovers after received
  the network differential signal.
• Built-in network module
  Standard 4G module which supports WCDMA/CDMA2000/TDD-LTE/FDD-LTE 4G network and downward
  compatible with 3G GPRS/EDGE. Smart PPP dialing technology can auto dial which makes the G1 PLUS
  keeping online continuously during the survey

Intelligent technology

• Storage technology
  Internal 8GB SSD and it supports external USB storage.
  Supports STH, RINEX raw data storage and the sample rate can reach to 50Hz.
  Supports automatic data storage cycle, the data will be automatically deleted when the space is not
  enough.
  Disk-On-key which can easily copy the data to external U disk.
• Dual-battery system
  The new design for battery house can support 2 batteries installed, that is able to last longer time for
  common field work!
• iVoice
  Intelligent iVoice can voice broadcast the current receiver status and operation guide in real time, it
  supports multiple languages.
• Smart power pole supply technology
  External power pole can provide up to 10 hours of power. It also can display the remaining power in real
  time.

Spesifikasi dan Fitur  :

Satellite Signals Tracked Simultaneously

• Signal tracking :
  555 channels
  BDS B1,B2,B3
  GPS L1C/A,L1C,L2C,L2E,L5
  GLONASS L1C/A,L1P,L2C/A,L2P,L3
  SBAS L1C/A,L5 (just for the satellites supporting L5)
  GaliIeo GIOVE-A,GIOVE-B,E1,E5A,E5B
  QZSS,WAAS,MSAS,EGNOS,GAGAN
  L-band
• GNSS feature :
  Positioning output rate:1Hz~50Hz
  Initialization time:<10s
  Initialization reliability:>99.99%


Code differential GNSS positioning

• Secondary development
  Innovative GNSS Receiver
  Horizontal: ±0.25m+1ppm
  Vertical: ±0.50m+1ppm
  SBAS positioning accuracy:typically<5m 3DRMS
• Static GNSS surveying : Horizontal: ±3mm+0.1ppm Vertical: ±3.5mm+0.4ppm
• Fast static : Horizontal: ±3mm+0.3ppm Vertical: ±5mm+0.5ppm
• Real-time kinematic surveying : Horizontal: ±8mm+1ppm Vertical: ±15mm+1ppm
• SLink : Horizontal: 3-10cm (5-30min) Vertical: 8-20cm (5-30min)
• RTK initialization time : 2-8s

User interaction

• Operaing system : Linux
• Buttons : Two buttons operation
• Indicators : Five indicate lights
• Web UI : Freely to configure and monitor the receiver by accessing to the web server via Wi-Fi and USB
• Voice guide : iVoice intelligent voice technology provides status and voice guide
  Supporting Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish and user define
• Secondary development : Providing secondary development package

Hardware performance

• Dimension : 135mm(Diameter)x125mm(Height)
• Weight : 1.39kg (with two batteries)
• Material : Magnesium aluminum alloy shell\
• Operating : -40°C~+65°C
• Storag : -40°C~+80°C
• Humidity : 95% Non-condensing
• Waterproof/Dustproof : IP67 standard, protected from long time immersion to depth of 1m
  IP67 standard, fully protected against blowing dust
• Shock and vibration : Withstand 2 meters pole drop onto the cement ground naturally
• Power Supply : 9-25V DC, overvoltage protection
• Battery : Rechargeable, removable Lithium-ion battery, 7.4V 3400mAh/per; standard four batteries power
• package(optional)
• Battery solution : Supporting one or two batteries installed; supporting power pole connection
• Battery life : Single battery: >8h (static mode).And two installed hot swappable batteries works for more than 16 hours.

PAKET PEMBELIAN :

Base
Rover
Conroller
Radio Eksternal
Garansi 12 Bulan
