Description
Geodetik CHCNAV i83 Pro
Jual Geodetik CHCNAV i83 Pro Smart IMU-RTK GNSS + L-Band Receiver The i83 Pro is a 336-channel multi-band IMU-RTK GNSS receiver built for surveying, construction, and mapping professionals. With advanced GNSS technology, including CHCNAV’s iStar algorithm and Trimble RTX and Omnistar options, it ensures consistent accuracy on any site. Its 200 Hz Auto-IMU sensor boosts GNSS RTK survey productivity, making it the perfect tool for demanding field operations.
Jual Geodetik CHCNAV i83 Pro
Jual Geodetik CHCNAV i83 Pro
Superior GNSS Technology
Achieve centimeter-level precision with the i83 Pro’s 336-channel GNSS engine, powered by the iStar algorithm increasing GNSS signal tracking efficiency by up to 30%, ensuring accurate, survey-grade positioning.
Optional Trimble RTX
Expand your capabilities with the i83 Pro’s support for Trimble RTX and OmniSTAR, offering RTK-level accuracy without a base station. The receiver also supports flexible data rates, including 20Hz and optional 50Hz outputs.
Enhanced IMU-RTK Surveying
Increase your productivity with the i83 Pro’s built-in 200 Hz auto IMU sensor for accurate measurements with up to a 60° pole tilt, making it faster and easier to perform surveying tasks while maintaining a high level of accuracy.
Advanced Quality Control
The i83 Pro’s advanced integrity features, including Fault Detection & Exclusion (FDE) and Receiver Autonomous Integrity Monitoring (RAIM), improve position quality by identifying and mitigating satellite errors.
Comprehensive Connectivity
i83 Pro keeps you connected with built-in Wi-Fi, Bluetooth, 4G, and UHF modems, and features multiple GNSS survey modes, including RTK networking, UHF base rover configurations, and continuous RTK corrections.
User-Friendly Interface
Work efficiently with the i83 Pro’s high-resolution color display and intuitive controls. The display provides clear status updates, while the system’s quick setup makes it easy to use in the field.
Fitur GPS CHCNAV i83 Pro
-
Advanced GNSS
336-channel GNSS with Trimble RTX -
High Connectivity
Built-in Wi-Fi, Bluetooth, NFC, 4G, and UHF modems. -
Rugged Design
IP68 and MIL-STD-810H for dust, water, shock, and vibration resistance.
Spesifikasi :
- GNSS : Full GNSS + L-Band
- IMU : 200 Hz
- Precision max. : 0,8 cm H / 1,5 cm V
- Wireless : Bluetooth, Wi-Fi, NFC
- Cellular : 4G LTE
- Modem : 410-470 MHz, Rx/Tx
- Weight : 1,15 kg
- Dimensions : 152 x 78 mm
- Battery life : Up to 34 hours RTK rover
ITEM PEMBELIAN :
CHCNAV i83 Pro Base
CHCNAV i83 Pro Rover
Controller CHCNAV HCE600

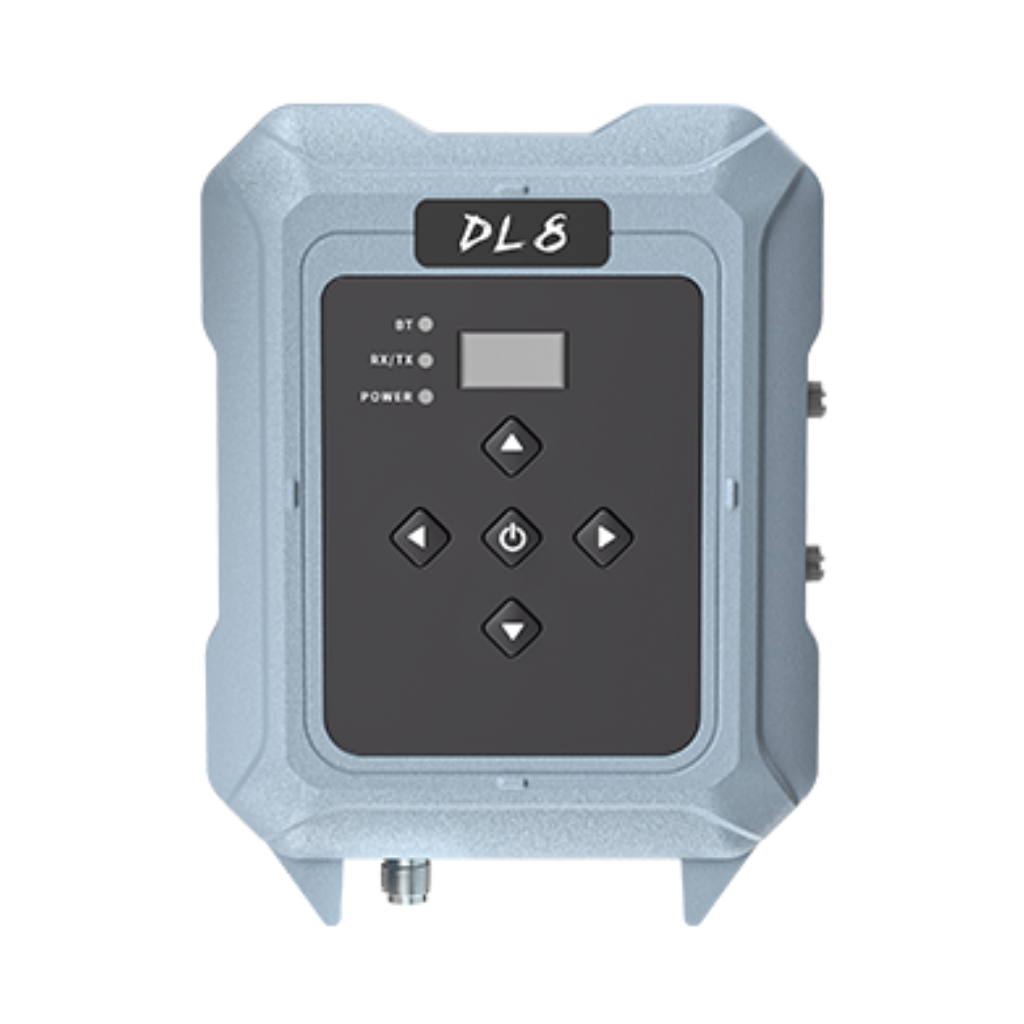

Radio External DL8
Alumunium Tripod
Pole Carbon
Tribrach Adapter
